AC Charger

3.3kW

Techbec's app-compatible, connected, and purposeful EV charging solution is quick, efficient, and reliable. Applications for both domestic and industrial use are available for 3.3 kW AC Chargers.

  • Compact and aesthetic
  • 3.3 kW model with single IEC 60309 socket
  • Seamless installation and utility
  • App-based reporting

  • Input Power – 1 phase, 230 v AC
  • Charging Power –3.3 kW
  • Output voltage – 230 V-240 V
  • Output Current – 16 A
  • Protection – IP-54
  • Earthing Detection – Orange Color Blinks

  • Industrial and Domestic Plug-ins

  • 2, 3, 4 wheelers

  • Residential and Commercial
AC Charger
AC Charger

7.2/11 kW Type-2 Charger

Techbec's Type-2 AC charger's 7.2kW output is interoperable with all electric cars with outputs up to 7.2kW, making it more suitable to fulfil the various users' various charging requirements. High-end efficiency criteria for these chargers allow for minimal power expenses for users.

  • Supports BEVC-AC001 Specifications
  • User authentication through RFID/ OTP/ OCPP
  • Single/3 Phase
  • Resilient and takes care of grid load & varying charging demand
  • User-friendly app for EV owners to monitor the charging process & billing information
  • Able to manage power loads, keeping it in sync with the charging load
  • Grid Responsive Metering & Billing
  • Mobile Application for Drivers

  • 7.2kW X 01 IEC 62196-2
  • INPUT VOLTAGE- 230 V
  • Current- 32 Amp
  • Charging Mode: Mode 2
  • Efficiency : 94%
  • Natural Air cooling
  • Ambient temp. : -30 to 55 deg C
  • Storage temp. : -40 to 70 deg C
  • Humidity : < 95% (NC) at 2000 Meter Altitude

  • Type-2 Gun

  • 2, 3, 4 wheelers

  • Residential and Commercial
AC Charger

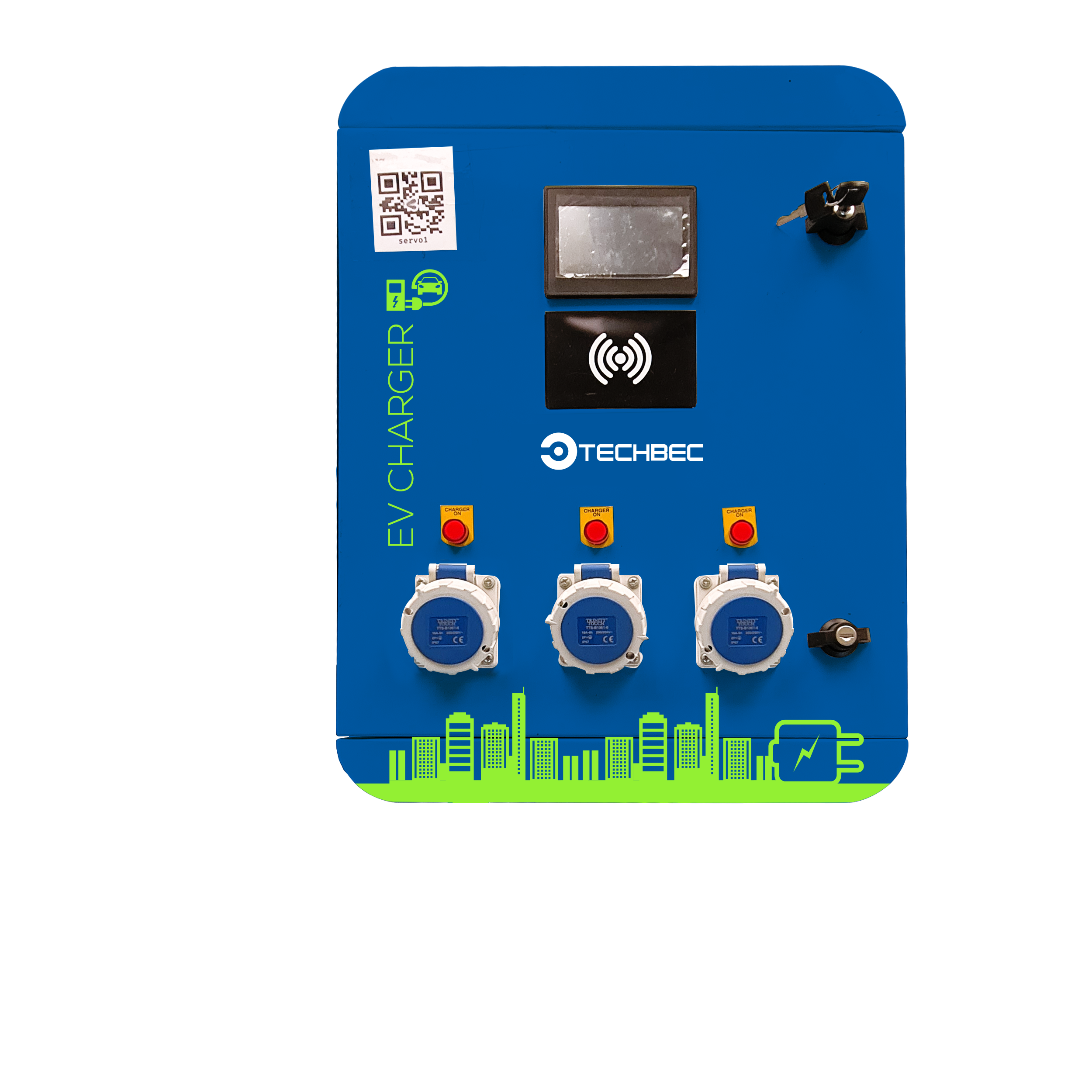

10 kW Bharat AC-001

These chargers are made in accordance with Bharat AC001 regulations and may be used with any type of vehicle. They include three outlets, each with a 3.3kW output and an IEC60309 socket. The charger is ARAI approved, which enables you to connect to the remote access system and put your charger online. The ideal uses for these chargers are controlled fleet charging and public charging.

  • Robust all-weather enclosure for Indoor and outdoor use
  • Wall or pillar mounting
  • OTP/QR-code based responsiveness
  • Ethernet (RS45), GSM (2G/3G/4G Sim Cards) (WIFI Optional)
  • 4.3” LED Touch Display for user interaction
  • OCPP 1.6 Communication Protocol between EVSE and CMS
  • 3.3kW X 3 Nos of IEC 60309 Female sockets with Simultaneous charging
  • ARAI & IEC Approved

  • Input power- 3 Phase (5Wire) 415VAC, 50Hz
  • Output power- Voltage up-230VAC Per Socket
  • Current up-15A AC Per Socket
  • Power- 3.3kW Per Socket
  • Configuration

    • Output-1: 3.3kW X 01 IEC 60309

    Output-2: 3.3kW X 01 IEC 60309

    Output-3: 3.3kW X 01 IEC 60309

  • Efficiency : 94%
  • Natural Air cooling
  • Ambient temp. : 0-55 deg C
  • Storage temp. : 0- 70 deg C
  • Humidity : < 95% (NC) at 2000 Meter Altitude

  • Industrial connectors

  • 2, 3, 4 wheelers

  • Residential and Commercial
AC Charger
AC Charger

14 kW Hybrid AC Charger

Presenting the first combination charging kiosk in India that supports power supplies of 2W, 3W, and 4W. These chargers are compatible with RFID identification systems as well as several communication protocols including GSM and Wifi. allowing clients to make quick online payments in accordance with the given figures, which lowers transaction costs and shortens payment processes.

  • Compact & sturdy.
  • Three output options 1*7.2 kW , 2*3.3 kW
  • Safe, reliable & theft-proof
  • Online payment enabled
  • LCD screen To track energy consumption
  • Unique design for high visibility

  • Input voltage- 3 phase, 415-v
  • No. of output plugs-3
  • Output connector- 3.3*2 & 7.2*1
  • Output rating- 240 Vac,Max 16A/240 Vac,Max 32A
  • Charger and Cms- OCPP 1.6 J , WIFI
  • IP Rating- IP 54

  • 7.2 kw * 1 (Type-2 Gun) & 3.3 kw * 2 (Industrial Connector)

  • 2, 3, 4 wheelers

  • Residential and Commercial

AC Charger

+
